TPS2001CDGNR
Manufacturer:
Texas Instruments
Mfr.Part #:
TPS2001CDGNR
Datasheet:
Description:

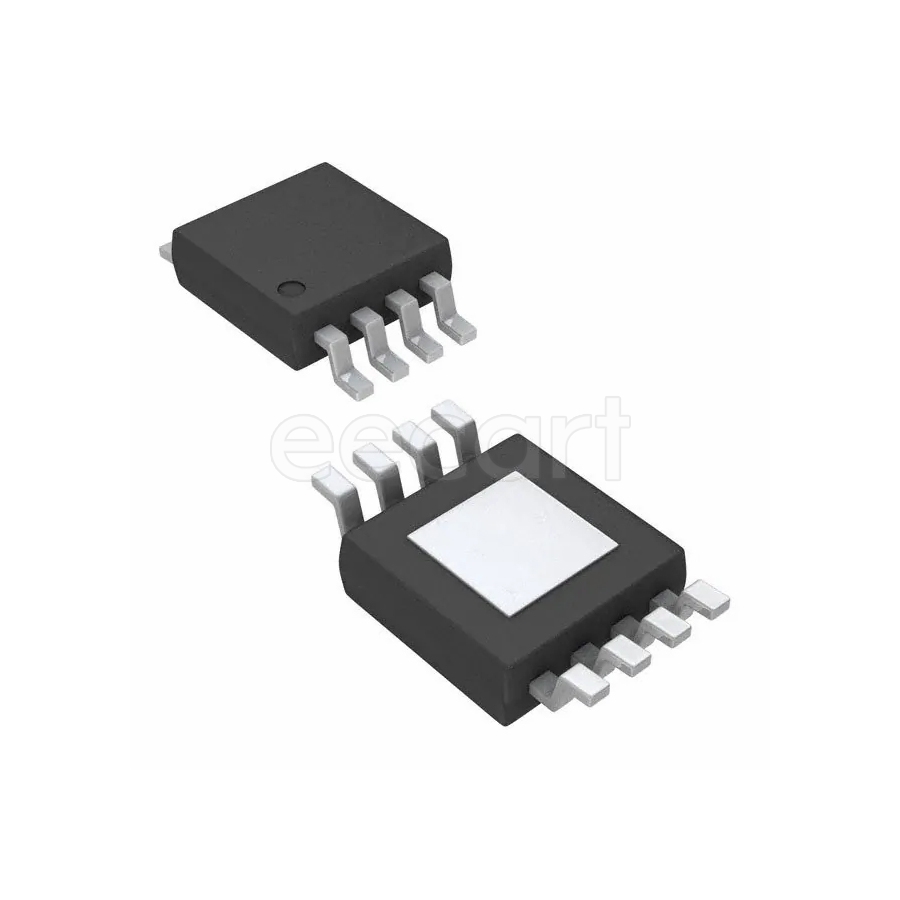

Power Switch ICs - Power Distribution MSOP-8 EP SMD/SMT Turn-On Delay Time:2.2 ms Turn-Off Delay Time:2.5 ms 98 mΩ
| Parameter | Value |
|---|---|
| Length | 3 mm |
| Width | 3 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 8 |
| Height | 1.1 mm |
| Packaging | Reel |
| Thickness | 1.02 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Type | USB Switch |
| Interface | On/Off |
| Min Input Voltage | 4.5 V |
| Output Current | 2 A |
| Operating Supply Voltage | 4.5 V to 5.5 V |
| Output Type | N-Channel |
| Lifecycle Status | Active |
| Max Supply Voltage | 5.5 V |
| Min Supply Voltage | 4.5 V |
| Max Output Current | 2 A |
| Turn-On Delay Time | 2.2 ms |
| Turn-Off Delay Time | 2.5 ms |
| Output Configuration | High Side |
| Max Input Voltage | 5.5 V |
| Number of Outputs | 1 |
| Nominal Supply Current | 2.9 A |
| Fault Protection | Over Temperature, Reverse Current |
| On Resistance (RON) | 98 mΩ |
| Ratio - Input:Output | 1:1 |
| Current Limit | 2.9 A |
Stock: 377
Distributors
pcbx
pcbxUnit Price$0.29165
Ext.Price$0.29165
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.29165 | $0.29165 |
| 10 | $0.25901 | $2.59010 |
| 50 | $0.23002 | $11.50100 |
| 100 | $0.19378 | $19.37800 |
| 500 | $0.16325 | $81.62500 |
| 1000 | $0.15548 | $155.48000 |
| 3000 | $0.14808 | $444.24000 |
| 5000 | $0.14102 | $705.10000 |
